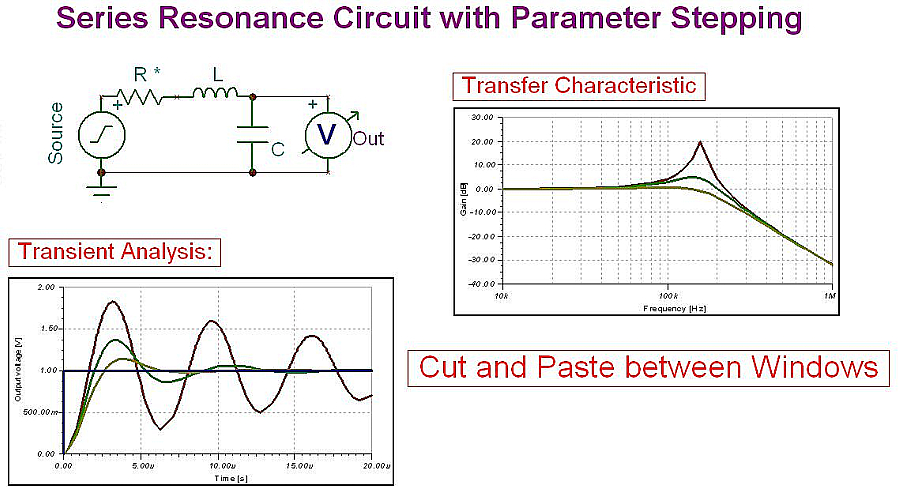

RLC Circuit





Second Order System Transfer Functions

H(s) = K*((s-z1)*(s-z2))/((s-p1)*(s-p2))

where: K = Gain

H(s) = K*((b2*s^2+b1*s+b0)/((s/w02)^2+2*zeta2*s/w02+1)

H(s) = K*((b2*s^2+b1*s+b0)/((s/w02)^2+s/(w02*Q2)+1)

(where: 2*zeta = 1/Q)
